FDM Technology

Fused Deposition Model (FDM)

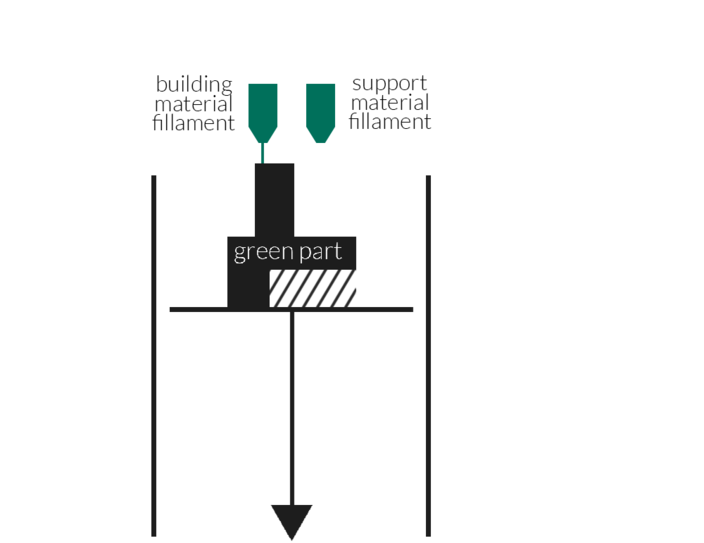

Metal Fused Deposition Modeling (FDM) is a sinter-based AM technology that involves two process steps to produce a metal part. A filament of metal and polymer is heated and applied to a platform in layers. To obtain the finished part, the printed green part must be sintered in the second process step.

Characteristic features

  • particularly suitable for components > 10cm
  • needs support structures
  • comparatively cheap

Technical properties

  • Surface: Ra ~ 14-18 µm
  • Tolerances: ±0.5 mm
  • Layer thickness: 50-130 µm
